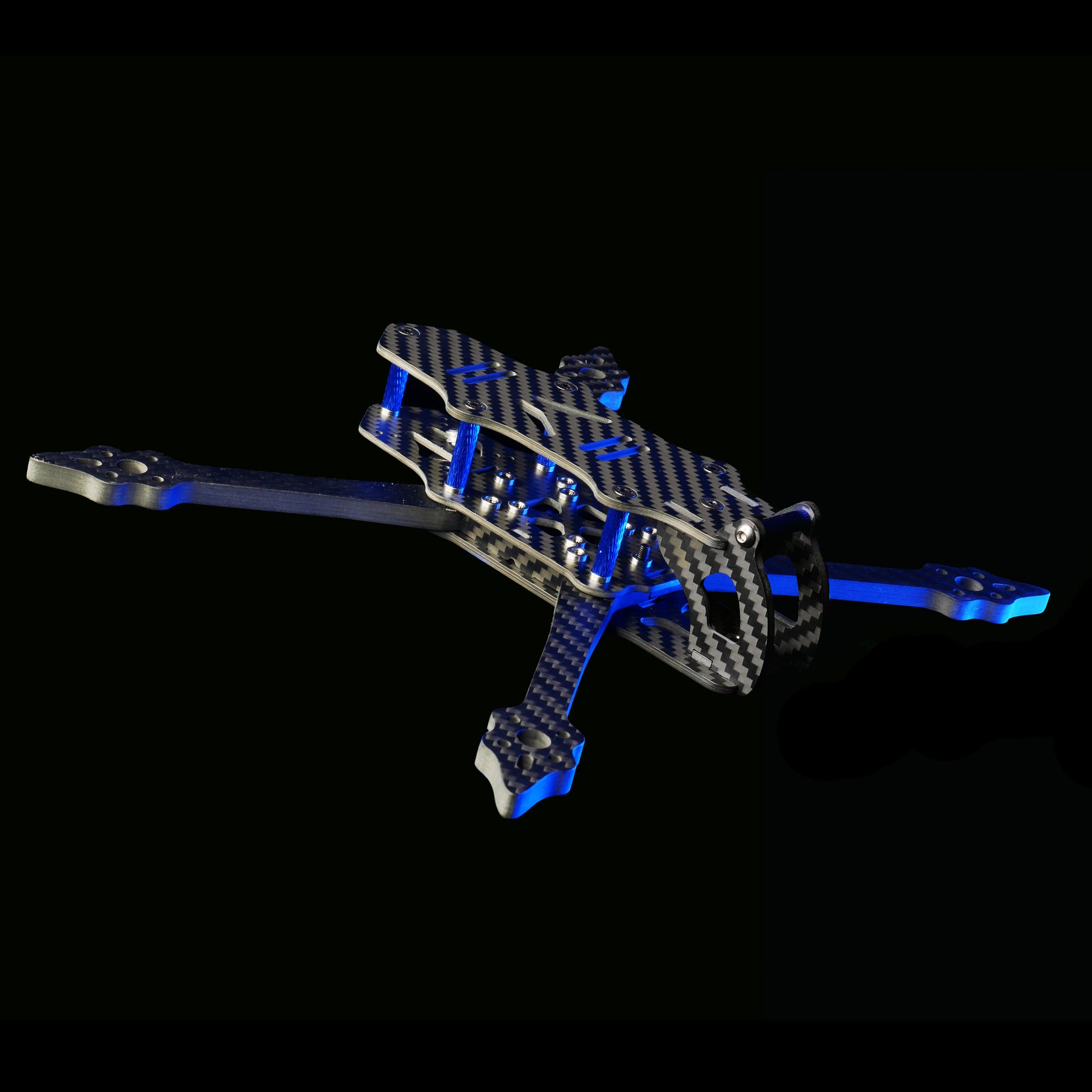

Introducing the Vannystyle Pro Drone Frame – Setting New Standards in Durability and Performance!
Upgrade your FPV experience with the Vannystyle Pro, the latest innovation from our renowned Vannystyle series. Built upon the success of the original Vannystyle, this Pro edition takes drone frames to new heights with its enhanced durability, reduced weight, and increased compatibility with a wide range of FPV gear.
🛡️ Unmatched Durability
My team pilots and I wanted a frame that gave us the confidence to fly hard and crash hard. The Vannystyle Pro can take a crazy amount of abuse, even in tough locations such as bandos, concrete jungles, and more. To increase durability we started by widening the arms and making them 6mm thick. From there we knew we wanted the body to be durable, so we went with a camera cage design that protects the camera along with a standoff to mount your action camera mount too, making it almost impossible to eject your HD camera in crashes. Finally we squished the body slightly to make the build a bit tighter and found ourselves with a frame that allows you to push your limits without worrying about damaging your frame. And trust me, we spent plenty of time as a team flying and crashing to make sure that the frame is a durable as it could be.
We understand the importance of weight in FPV frames, and that's why we've made the Vannystyle Pro lighter than ever. The reduced weight enhances agility, responsiveness, and overall flight performance, allowing you to reach your full potential on the track or in the skies. We achieved a lower weight by reducing the amount of hardware needed to assemble the frame. The added benefit of this is it’s easy to assemble and work on. Arm swaps require only one screw to be removed, and the top plate comes off with just six screws.
The Vannystyle Pro is engineered to seamlessly integrate with a wide variety of FPV gear, ensuring you have the freedom to choose the components that suit your style and preferences. The The frame supports 20x20 and 30x30 size stacks, as well as mounting holes in the rear for 20x20 and 25.5x25.5 size video transmitters such as the DJI O3 Air Unit, Vista, Walksnail Avatar, and more. We went with TPU inserts in the camera cage allowing you to adapt the frame to whatever camera you use while also isolating it from vibrations. From cameras such as the DJI O3 all the way down to nano size cameras and more, you can choose what works best for you, and don’t worry, we include some mounts with the kit to get you flying, and if there is something specific you want, please check out the thingyverse link.
True X or Squish?!?!

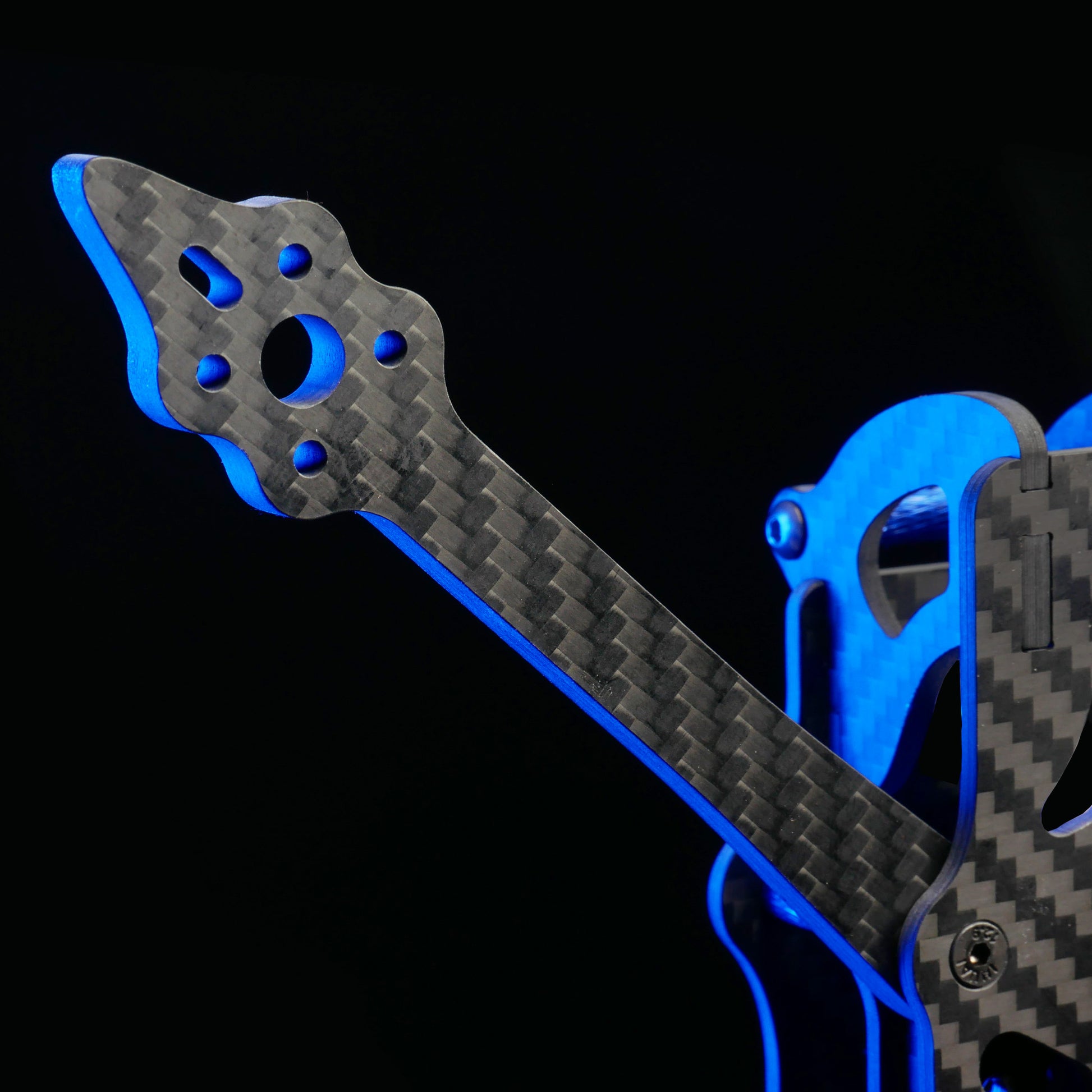

One big request we got with the original vannystyle frame was to make true x arms, so we did! True X arms give a more crisp and agile flight feel, while also protecting the front of the frame better in crashes. The squish arms are better for getting the props out of view and are slightly lighter as well. The best part is the arms are interchangeable, so you can always swap them out for a different configuration down the road.
Elevate your FPV game with the Vannystyle Pro. Experience durability, agility, and versatility like never before. Whether you're a seasoned pilot or just starting your FPV journey, the Vannystyle Pro is the frame that will take your flights to the next level.
Get ready to redefine your FPV experience – choose the Vannystyle Pro today!

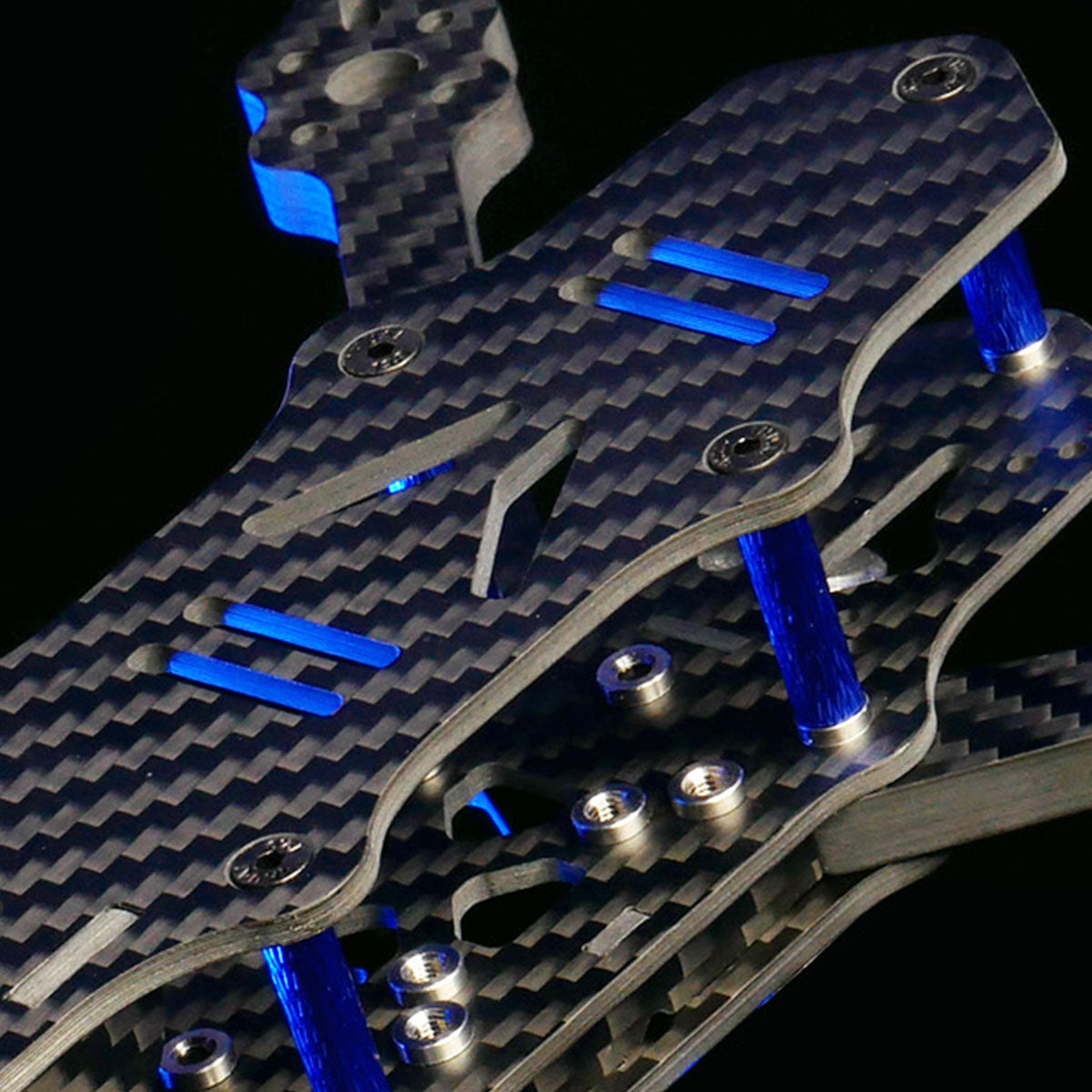

"Toilet Tank" Battery Mount
The ability to "toilet tank" the lipo battery moves a lot of mass closer to the center of gravity, which results in better overall flight performance.

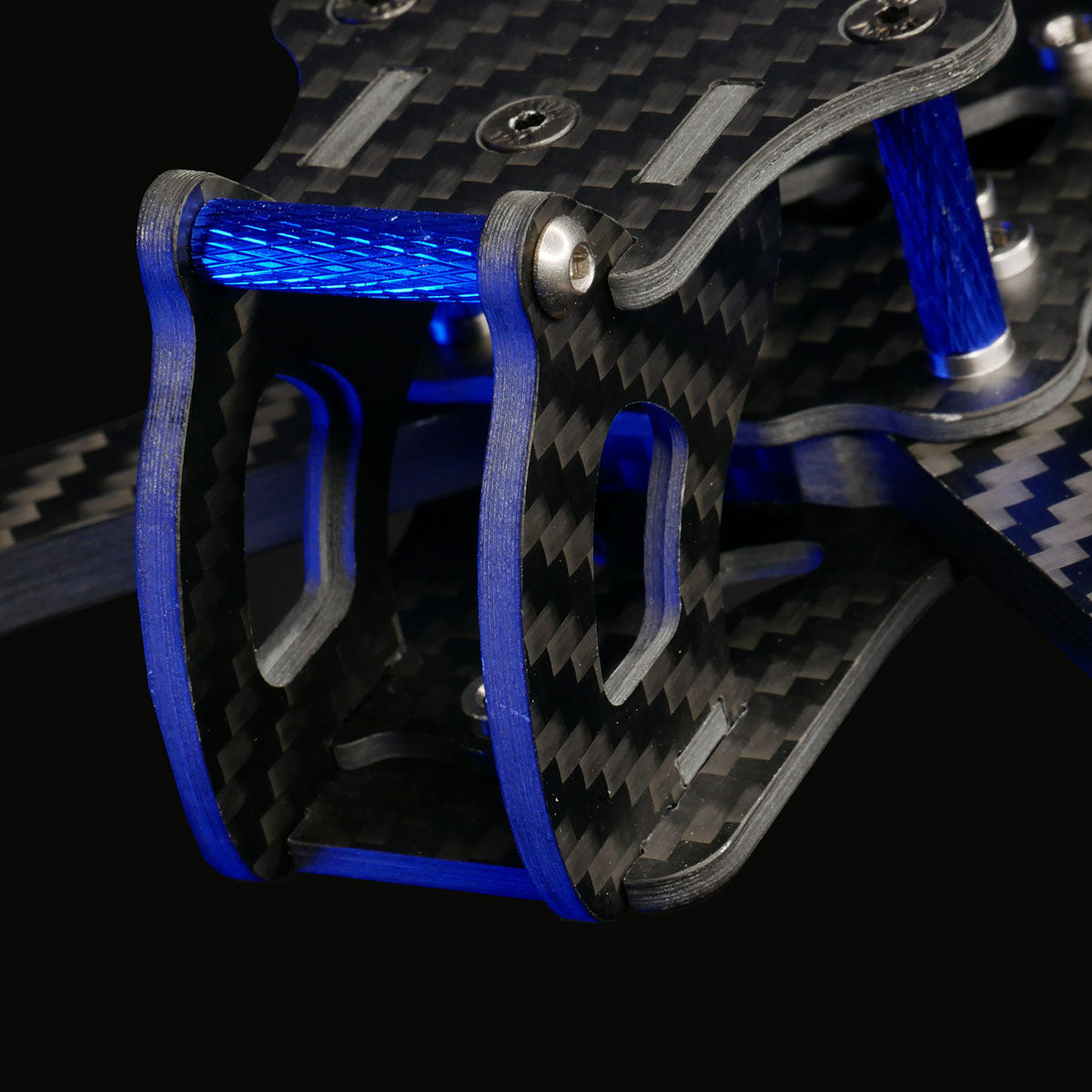

In between the bottom plate and mid plate are four vertical carbon fiber plates, which stiffen the frame up, creating a better overall flight feel, and keeps the "new" feeling for much longer.
Super Strong Construction

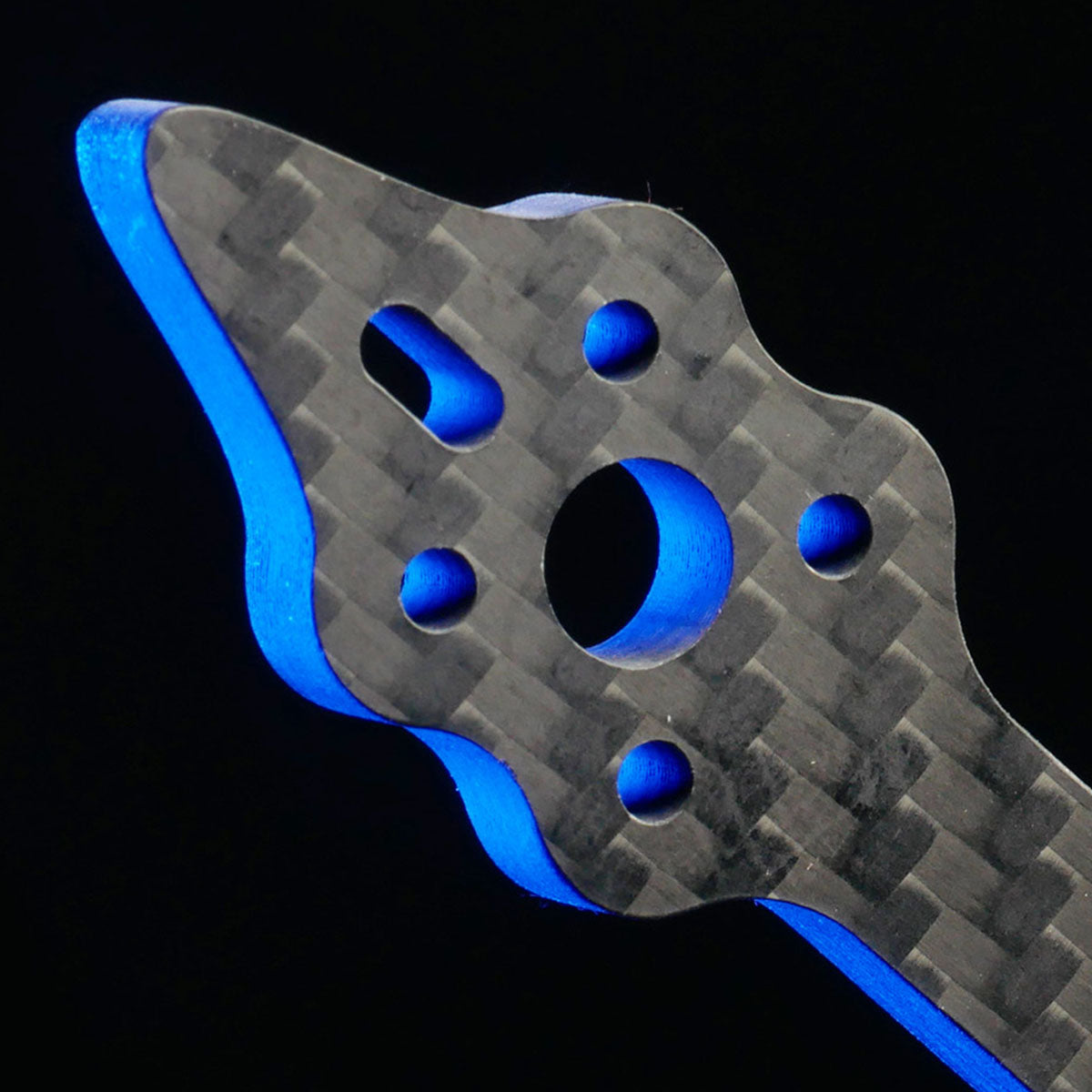

The 6mm thick arms and squish body make the Vannystyle extremely tough and able to withstand some really hard crashes. And with both steel and titanium hardware this super durable beast weighs in at just 123 grams!

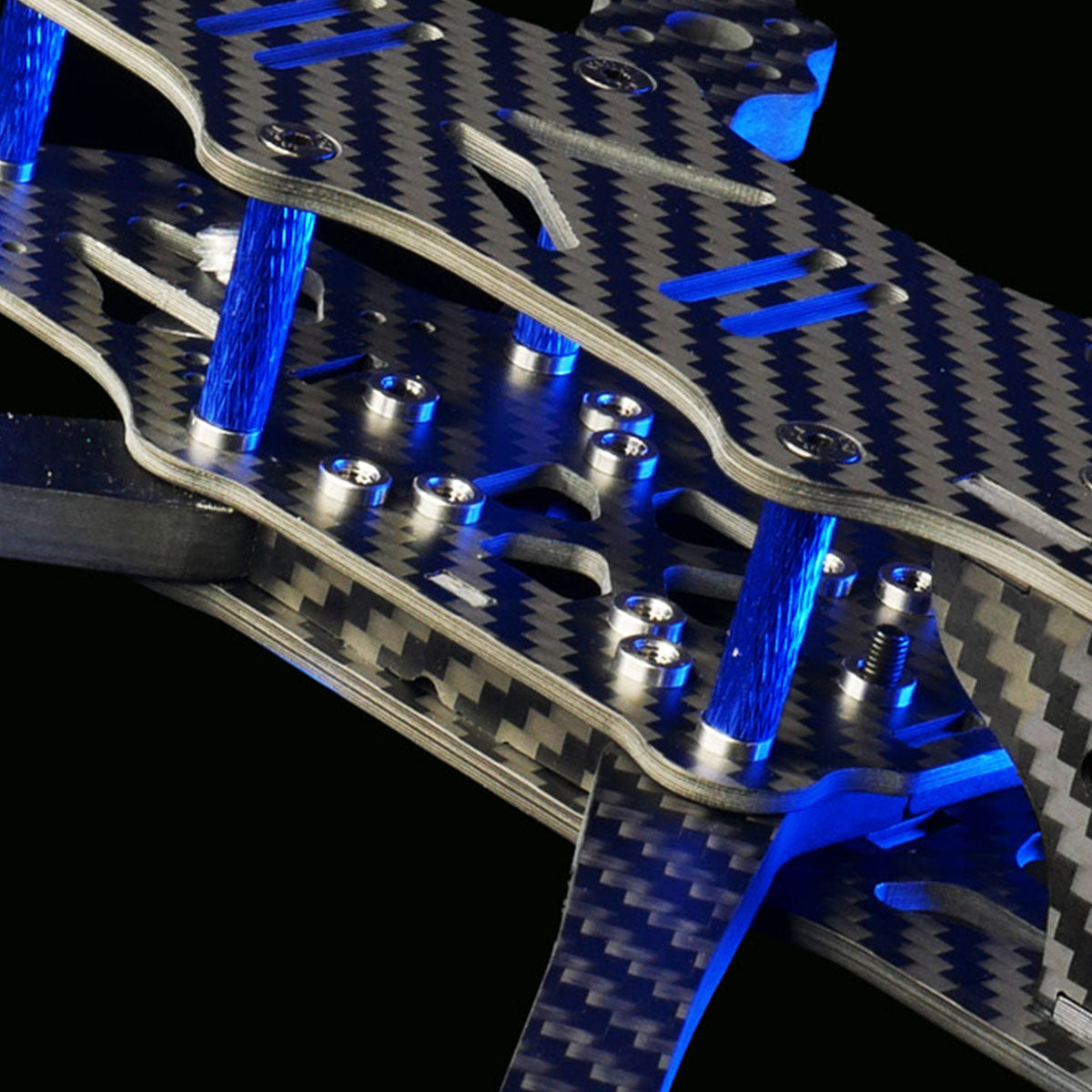

The Vannystyle Pro frame also uses preinstalled M3 pressnuts instead of locknuts for both the arms and the stack screws, saving time while building and repairing.
